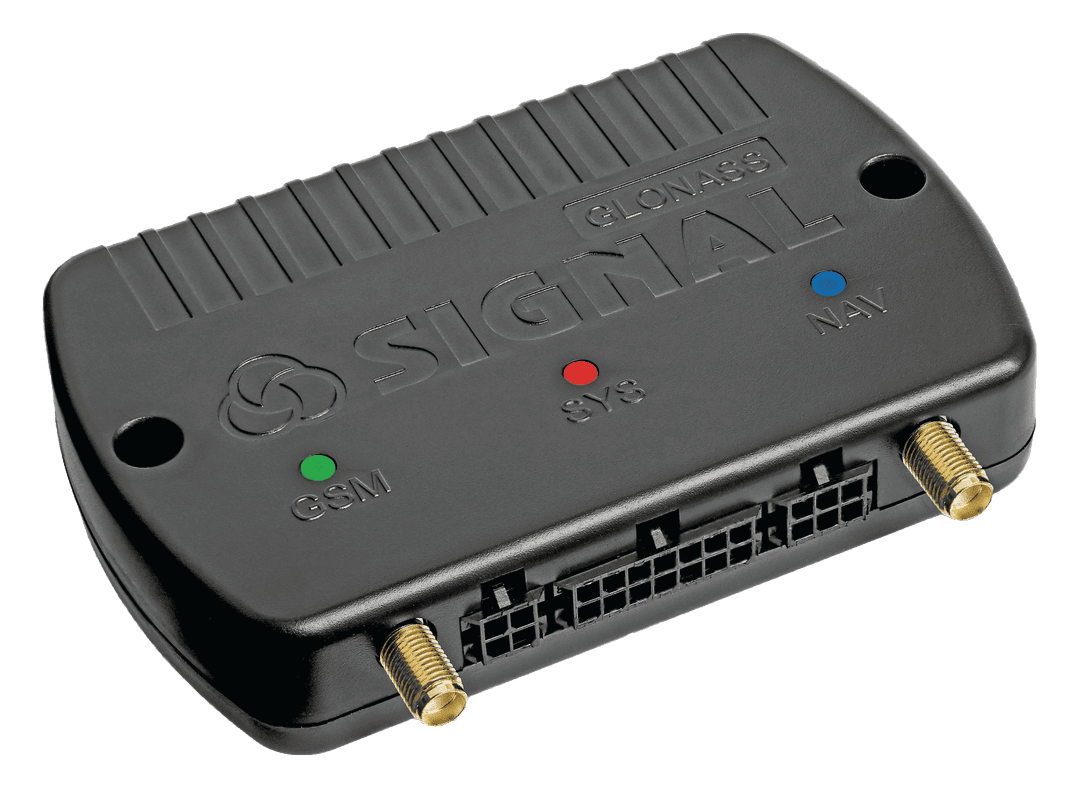

Signal S-2653
Navtelecom Signal S-2653 is an advanced vehicle tracking device that will allow you to process telemetry data and monitor driver behavior.
PRODUCT SPECIFICATIONS
2G-modem
S-2653
GSM Frequency Bands
GSM 850, EGSM 900, DCS 1800, PCS 1900
Number of SIM-cards
2
Bluetooth
Yes, v.4.0
Supported Navigation Systems
GLONASS/GPS/Beidou
Number of Channels
tracking: 33; picking-up: 66
Time of First Coordinates Determination
Cold start: <35 s Warm start: <30 s Hot start: <1 s
Battery
Li-Po 3,7 V, at least 800 mAh
Battery Charging from USB
yes
Total Number of Universal Inputs
6
Number of Outputs
4
The Volume of Non-volatile Memory, Mb
8
MicroSD Card Support with the Memory up to
32 Gb
AMeasured Acceleration Range, g
+/-24
Acceleration Errors in the Range of +/-24g Less Than %
0.5
Data Transferring by GSM by SMS, GPRS
yes
Features
Use Cases
Downloads
Videos
Features
Data transferring by GSM by SMS, GPRS;
Number of servers 3;
5 subscribers for SMS-alert;
EcoDriving function;
Digital fuel level sensor connection;
External GLONASS / GPS and GSM antennas;
2G modem;
Built-in Li-Po 800 mA / h;
2 SIM cards;
Supports SD cards with memory up to 32 GB;
Power protection and input line protection up to 200V;
6 universal input lines;
4 control output lines;
Interfaces: RS-485, 2 CAN and 1-Wire;
MODBUS support;
Bluetooth 4.0;
Use Cases
Transportation and Logistics:
Use Case:
Fleet management companies use Signal S-2653 to monitor driver behavior, optimize routes, and prevent collisions.
Benefits:
Reduces accidents, improves fuel efficiency, and enhances overall fleet operations.
Public Transportation:
Use Case:
Buses and trains utilize Signal S-2653 for collision avoidance, pedestrian detection, and improved route management.
Benefits:
Increases passenger safety, reduces accidents, and enhances public transportation efficiency.
Private Safety:
Use Case:
Signal S-2653-equipped private cars can automatically adjust their speed to maintain a safe following distance from the vehicle ahead, reducing the risk of rear-end collisions.
Benefits:
Incorporating Signal S-2653 into private cars offers a comprehensive safety net, significantly reducing the risk of accidents and improving overall driving experience.
