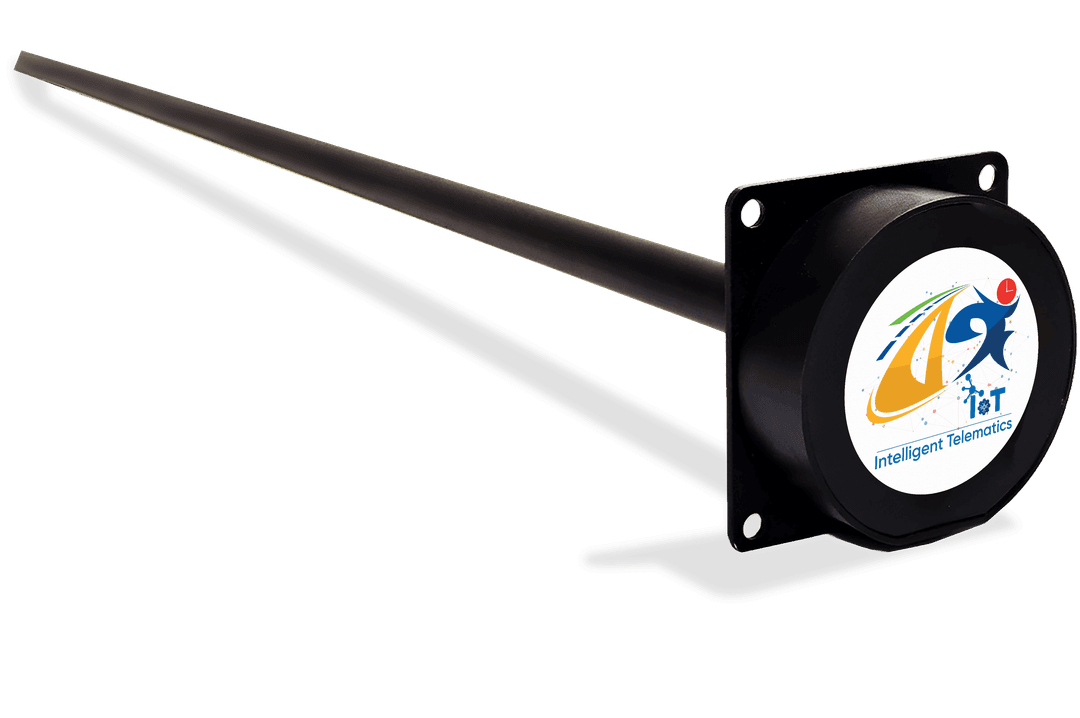

Mielta Fantom (BLE)
Wireless Fuel Level Sensor (FLS) Fantom Mielta is designed to measure the level of light oil hydrocarbons (diesel, fuel, gasoline, kerosene and etc.) in various purposes containers.
Compatibility with different fuels
Self-diagnostic system
Built-in shielding sensor
Continuous recording of data in black box
Determination of vehicle inclination
Explosion-proof certificate
Guarantee of 3 years
PRODUCT SPECIFICATIONS
POWER SUPPLY
Battery Li-SOCL2 3.6 V, 2.7 А*h
MEASUREMENT PERIOD
from 1 to 10 sec
THE PERIOD OF SENDING DATA
from 1 to 10 sec
AVERAGING INTERVAL
from 1 to 60
RELATIVE MEASUREMENT ERROR
No more than 1%
DATA TRANSFER FORMAT
0 – Mielta 1 – analog №1
WIRELESS TRANSMITTER Bluetooth Low
Energy 5.0, 2.4 GHz
FREQUENCY RANGE
2400-2483,5 mHz
TRANSMITTER POWER
Adjustable, <11 dBm EIRP
TILT ANGLE MEASURER
Inbuilt accelerometer, +/- 1G α°=arcsin(Z/127)
TEMPERATURE MEASURER
inbuilt, +/- 2°С
INBUILT MEMORY
4 Mb
WIRELESS SOFTWARE UPDATE AND CONFIGURATION
YES
DEGREE OF PROTECTION
IP67
EXPLOSION PROTECTION MARKING
0ExiaIIBT6X
OPERATING TEMPERATURE
from - 40 to +85 °C
OPERATING PERIOD
7 years
THE LENGTH OF THE MEASURING PART
*990 (1490, 1990, 2490, 2990) mm
DIMENSIONS OF HOUSING
80х80х25 mm
Features
Use Cases
Downloads
Videos
Features
BLE technology enables one-way data transfer, conserving battery life for extended use.
Tracker monitors air frequency, receives sensor readings without a constant connection.
Black box uploads data via two-way Bluetooth connection for improved fuel consumption tracking.
Built-in battery with low power consumption eliminates the need for external power.
Mielta DM app configures sensors and offers a self-diagnosis system for error notifications.
Sensitive shielding sensor detects metal objects approaching the sensor body.
4Mb flash memory stores software, configuration, and data backups.
Built-in accelerometer detects vehicle inclination for data accuracy.
Support service available for assistance.
Mielta Fantom ensures accurate fuel monitoring, sabotage prevention, and easy installation.
Use Cases
Remote Generator Monitoring:
Use Case:
A remote telecommunications station installs Mielta fuel sensors in their backup generators. These sensors ensure adequate fuel levels for uninterrupted communication services.
Benefits:
The sensors enable remote monitoring and management of generator fuel levels, reducing the risk of service disruptions.
Fleet Management and Fuel Efficiency:
Use Case:
A logistics company integrates Mielta fuel sensors into their fleet of trucks. These sensors monitor fuel levels and consumption in real-time.
Benefits:
The company can optimize fuel usage, track fuel efficiency, prevent unauthorized fuel consumption, and reduce operational costs.
Agricultural Machinery Monitoring:
Use Case:
A farm uses Mielta fuel sensors in their tractors and harvesting equipment. These sensors monitor fuel levels and consumption during agricultural operations.
Benefits:
The farm can track fuel consumption per acre,optimize machinery usage, and enhance overall agricultural productivity.
