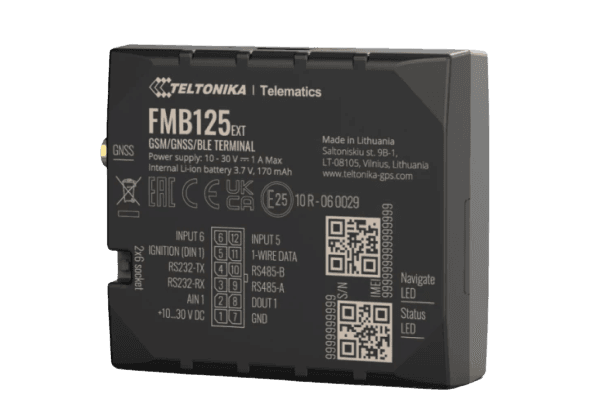

FMB125
DUAL-SIM TRACKER WITH RS232, RS485 INTERFACES
Teltonika FMB125 is SPECIAL tracker with external GNSS, internal GSM antennas, Bluetooth connectivity and backup battery. FMB125 is designed for communication with various third party RS232 or RS485 devices, like digital fuel sensors (LLS), Garmin navigation device, RFID reader and much more. It is also excellent for refrigerated transport, because it has an extended input/output set and 1-wire interface for temperature monitoring. With Teltonika CAN adapters, FMB125 can be even used in agriculture or construction & mining.
PRODUCT SPECIFICATIONS
Name
Teltonika TM2500
Technology
GSM/GPRS/GNSS/BLUETOOTH
GNSS
GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Receiver
33 channel
Position Accuracy
< 2.5 m CEP
Hot start
< 1 s
Warm start
< 25 s
Cold start
< 35 s
Input voltage range
10 - 30 V DC with overvoltage and reverse polarity protection
Internal Back-up battery
170 mAh Li-Ion battery 3.7 V (0.63 Wh)
Dimension
65 x 56.6 x 20.6 mm (L x W x H)
Weight
52 g
RS232
1
RS485
1
CAN Adapter Inputs
1
Features
Use Cases
Downloads
Videos
Features
Unparalleled Movement Source: Receive Alerts for Unusual Activity in Real-Time
Precision Speed Source: Accurate Vehicle Speed Control and Monitoring through Software
Preserve Battery Life with Sleep Mode: 0% Consumption, Ensuring Durability
Swift Data Updates: Refreshed Every 5 Seconds for Real-Time Insights
Seamless Bluetooth Configuration: Compatible with Any Bluetooth Device
Green/Eco Driving
Over Speeding detection
Jamming ,Idling,Towing,Crash detection
Immobilizer, iButton Read Notification
Trip detection
Odometer, Fuel counter, GNSS Unplug Detection
Offline tracking
Supported several sensor like- TPM sensor, Temperature & humidity sensor
Can read RFID Card data
Give data of ignition
Use Cases
Transportation and Fleet Management:
Use Case:
FMB 125 GPS tracking devices are widely implemented in vehicles, trucks, buses, and fleet assets to provide real-time monitoring of fuel levels. This data aids fleet managers in optimizing routes, planning refueling stops, and preventing fuel theft.
Benefits:
By accessing real-time fuel level information, fleet managers can identify inefficient driving practices and optimize routes to decrease fuel consumption. Monitoring fuel levels also safeguards against fuel pilferage, resulting in cost savings and enhanced fleet security.
Power Generator:
Use Case:
FMB 125 GPS tracking devices are integrated into power plants and backup generators to continuously monitor fuel reserves, ensuring uninterrupted power supply.
Benefits:
Ensuring sufficient fuel reserves in power generation facilities guarantees a seamless power supply, especially during high-demand periods or emergencies.
Logistics and Supply Chain:
Use Case:
FMB 125 GPS tracking devices are installed in tankers and fuel trucks within the logistics and supply chain sector to monitor fuel levels during transportation and delivery.
Benefits:
Real-time fuel level tracking facilitates efficient fuel distribution and logistics planning, leading to optimized supply chains and minimized delivery delays.
