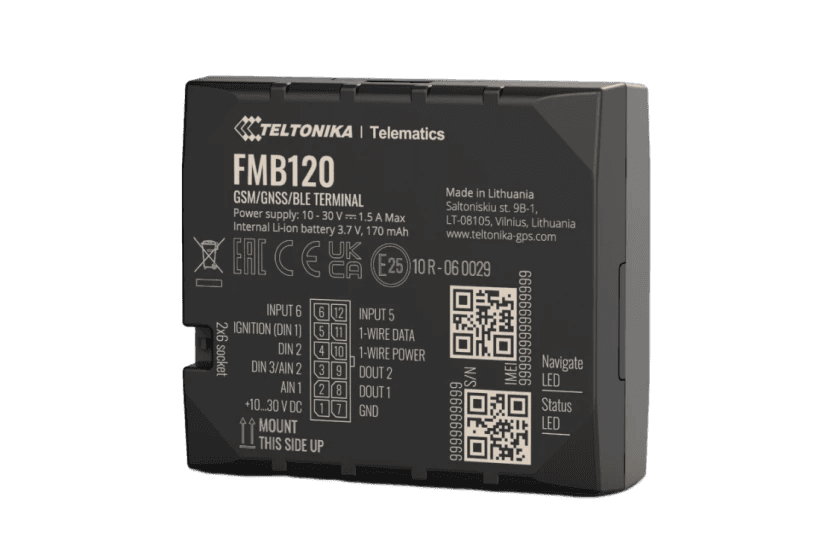

FMB120
Teltonika FMB120 is ADVANCED tracker with internal GNSS, GSM antennas, Bluetooth connectivity and backup battery. FMB120 is designed for light vehicles tracking but is also suitable for advanced applications like logistics, delivery services, utility transport and more. It is excellent for refrigerated transport, because it has extended input/output set and 1-wire interface for temperature monitoring. With Teltonika CAN adapters, FMB120 can be even used in agriculture or construction & mining.
PRODUCT SPECIFICATIONS
Module
Name:Teltonika TM2500; Technology:GSM/GPRS/GNSS/BLUETOOTH
GNSS
GNSS:GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS; Receiver:33 channel; Tracking sensitivity: -165 dBM; Position Accuracy: < 2.5 m CEP; Hot start: < 1 s; Warm start: < 25 s; Cold start: < 35 s
Cellular
Technology: GSM; 2G bands: Quad-band 850 / 900 / 1800 / 1900 MHz; Data transfer: GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B; Data support: SMS (text/data)
Power
Input voltage range: 10–30 V DC with overvoltage and reverse polarity protection; Internal Back-up battery: 170 mAh Li-Ion battery, 3.7 V (0.63 Wh); Power consumption: At 12V < 6 mA (Ultra Deep Sleep), At 12V < 8 mA (Deep Sleep), At 12V < 11 mA (Online Sleep), At 12V < 20 mA (GPS Sleep), At 12V < 35 mA (nominal)
Bluetooth
Specification: 4.0 + LE; Supported peripherals; Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support
Interface
Digital Inputs: 3; Digital Outputs: 2; Analog Inputs: 2; CAN Adapter Inputs: 1; 1-Wire: 1; GNSS antenna: Internal High Gain; Cellular antenna: Internal GSM High Gain; USB: 2.0 Micro-USB; LED indication: 2 status LED lights; SIM: Micro-SIM; Memory: 128MB internal flash memory
Physical specification
Dimensions: 65 x 56,6 x 18,9 mm (L x W x H); Weight: 55 g
Operating environment
Operating temperature (without battery): -40 °C to +85 °C; Storage temperature (without battery): -40 °C to +85 °C; Operating humidity: 5% to 95% non-condensing; Ingress Protection Rating: IP41; Battery charge temperature: 0 °C to +45 °C; Battery discharge temperature: -20 °C to +60 °C; Battery storage temperature: -20 °C to +45 °C for 1 month, -20 °C to +35 °C for 6 months
Certification & approvals
Regulatory: CE/RED, EAC, E-Mark, RoHS, REACH, SIRIM QAS, SDPPI POSTEL, ICASA
Features
Use Cases
Downloads
Videos
Features
Sensors: Accelerometer
Scenarios: Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modes: GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update: FOTA WEB, FOTA, Teltonika Configurator (USB, Bluetooth®), FMBT mobile application (Configuration)
SMS: Configuration, Events, DOUT control, Debug
GPRS commands: Configuration, DOUT control, Debug
Time Synchronization: GNSS, NITZ, NTP
Fuel monitoring: LLS (Analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII dongle
Ignition detection: Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle)
Use Cases
Fleet Management:
Use Case:
The FMB640 is widely used in fleet management to track vehicles, monitor driver behavior, optimize routes, and manage fuel consumption. It helps fleet managers improve operational efficiency, reduce operating costs, and enhance overall fleet performance.
Benefits:
Real-time tracking allows for better visibility of fleet movements, leading to improved route planning and timely deliveries. Monitoring driver behavior helps identify and address unsafe driving practices, leading to reduced accidents and lower insurance premiums. Fuel consumption data helps optimize fuel usage and reduce expenses.
Logistics and Transportation:
Use Case:
The FMB640 is applied in logistics and transportation to track shipments, monitor vehicle locations, and provide real-time updates to customers. It aids in supply chain optimization and improves last-mile delivery.
Benefits:
Real-time tracking of shipments and vehicles ensures accurate ETAs, enhances customer satisfaction, and reduces the risk of theft and loss. Efficient route planning leads to reduced fuel costs and increased productivity.
Public Transportation:
Use Case:
Public transport vehicles, such as buses, use the FMB640 to provide real-time tracking to passengers, optimize routes, and improve service efficiency.
Benefits:
Passengers can access real-time information on bus locations and arrivals, leading to better public transport experiences. Optimized routes help public transport authorities improve punctuality and reduce operational costs.
