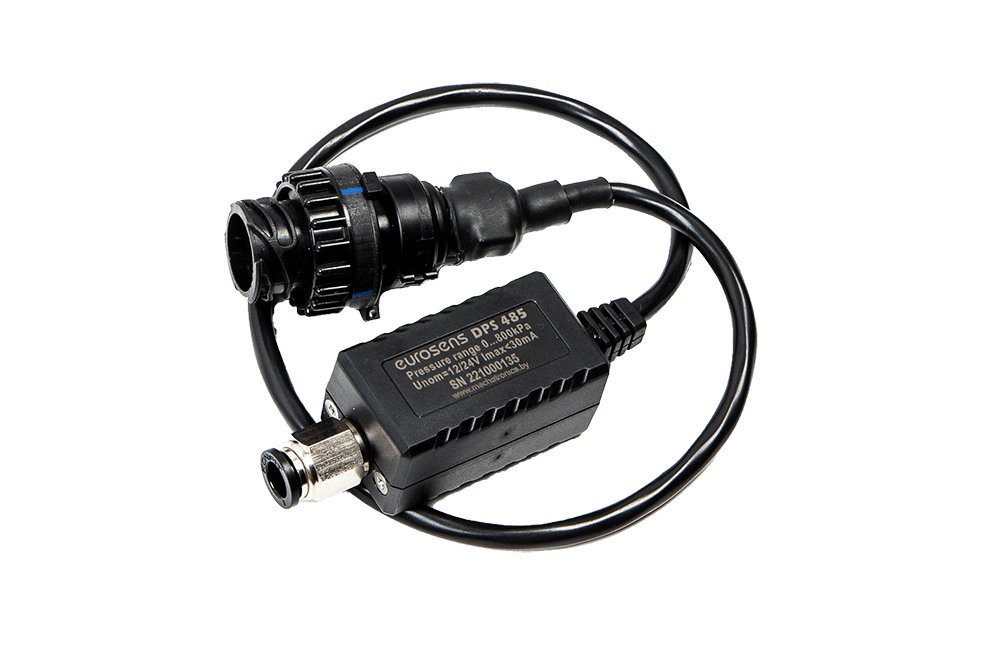

Eurosenss DPS A/RS/CAN
Axle load sensor eurosens® DPS converts the pressure of compressed air in the air suspension line to the output voltage or digital messages via serial RS-485 or automotive CAN bus J1939 protocol. Thin film bridge is used as a pressure transducer.
PRODUCT SPECIFICATIONS
Power Supply, V
9 - 36
Reverse Polarity Protection
Yes
Max Current Consumption, мА
50 (with 12 V)
Output Interfaces
Analogue, RS-485 or CAN
Output Data Protocol
LLS/MODBUS, CAN SAE J1939
Ambient Operating Temperature
-40 - +70 °C
Ingress Protection Rating
IP 67
Features
Use Cases
Downloads
Videos
Features
Fast and simple installation with a new mounting kit.
Can be mounted on any vehicle with air suspension.
Built-in microprocessor provides the operation of the sensor via digital interfaces in the network mode.
1 sensor can support up to 3 calibration tables simultaneously.
Software filtering and smart data processing.
Use Cases
Remote Generator Monitoring:
Use Case:
A remote telecommunications station installs Flow Meter ZCM-65 fuel sensors in their backup generators. These sensors ensure adequate fuel levels for uninterrupted communication services.
Benefits:
The sensors enable remote monitoring and management of generator fuel levels, reducing the risk of service disruptions.
Fleet Management and Fuel Efficiency:
Use Case:
A logistics company integrates Flow Meter ZCM-65 fuel sensors into their fleet of trucks. These sensors monitor fuel levels and consumption in real-time.
Benefits:
The company can optimize fuel usage, track fuel efficiency, prevent unauthorized fuel consumption, and reduce operational costs.
Agricultural Machinery Monitoring:
Use Case:
A farm uses Flow Meter ZCM-65 fuel sensors in their tractors and harvesting equipment. These sensors monitor fuel levels and consumption during agricultural operations.
Benefits:
The farm can track fuel consumption per acre,optimize machinery usage, and enhance overall agricultural productivity.
Downloads
Videos
