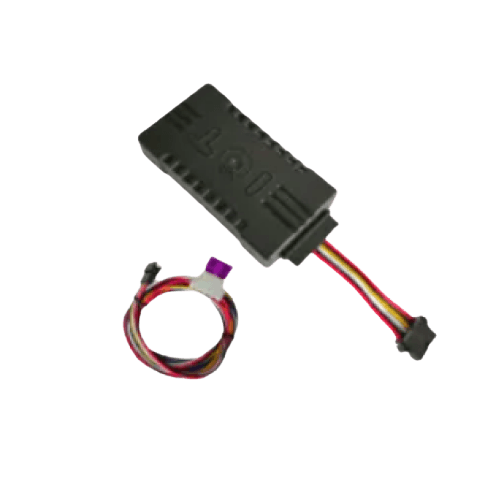

ANBTEK GT08L
GT08L is a IP67 Rated 4G LTE/GSM/GPS tracker for car, motorcycle, scooters and e-bikes.It's with superior receiver sensitivity, fast TTFF and 4G LTE design. And it can continuously report current position to the backend server. It has a built-in acceleration sensor, which can detect the moving/static and driving behavior.GT08L is developed by "openCPU" technology which brought lower cost, lower power consumption and fast response speed advantages. It's reputed to have industrial level performance but on economical solution pricing.
PRODUCT SPECIFICATIONS
Dimension
95*47*18mm
Power range
8-100V DC/1.5A
Working humidity
5%~95%
Operating temperature
‐30℃~75℃
Internal backup battery
120mAh/4.2V
Data transmit
4G LTE/GSM/SMS Communication
LED indicator
Red for network
Green for GPS
Input
ACC detect
SOS detect
Reserved (high trigger)
PS chip
ZKMICRO:ATGM336H (BDS+GPS)
GPS sensitivity
-160dB
4G/GSM Null zone data storage
2000 Waypoints
Position report
Time based and distance(mileage) based and angle based
Alarm alerts
GEO Fence, speed over, power tamper, SOS(Hijack), idle
harsh acceleration, harsh braking, harsh cornering
Configuration
SMS + computer(USB configurator) + server
Features
Use Cases
Downloads
Videos
Features
Real-time Location Data: The device continuously sends real-time GPS coordinates, allowing you to track the exact location of the device.
Speed and Direction: The GT08L can provide information about the speed at which the tracked object is moving and the direction it is heading.
Geo-Fencing: It supports setting up virtual boundaries (geofences) and can provide notifications when the tracked object enters or exits these predefined areas.
Ignition Status: The device can report whether the ignition of the vehicle is on or off.
Mileage Tracking: The GT08L can calculate and report the distance traveled by the vehicle.
Power Supply Status: Information about the power supply status (e.g., battery level, external power source status) can be provided.
ACC Status: Reports whether the ignition of the vehicle is on or off.
Historical Data: The device stores historical location and movement data that can be retrieved and analyzed later.
Alerts and Notifications: It can send various types of alerts, such as overspeed alerts, geofence alerts, power disconnect alerts, and low battery alerts.
Remote Control: Some models may allow limited remote control, such as remotely shutting down the vehicle's engine.
Use Cases
Transportation and Fleet Management:
Use Case:
Real-time tracking and monitoring of vehicles and assets, allowing fleet managers to optimize routes, improve fuel efficiency, and enhance overall fleet management.
Benefits:
By accessing real-time fuel level information, fleet managers can identify inefficient driving practices and optimize routes to decrease fuel consumption. Monitoring fuel levels also safeguards against fuel pilferage, resulting in cost savings and enhanced fleet security.
Logistics and Supply Chain:
Use Case:
GPS tracking devices can provide real-time location data for shipments and cargo, improving supply chain visibility and ensuring timely deliveries.
Benefits:
Real-time fuel level tracking facilitates efficient fuel distribution and logistics planning, leading to optimized supply chains and minimized delivery delays.
Emergency Services:
Use Case:
GPS tracking devices can aid emergency response vehicles by providing real-time tracking and navigation, enabling faster response times and more efficient service delivery.
Benefits:
GPS data helps emergency services avoid traffic congestion and road closures, ensuring timely arrival at the scene of emergencies.
